Průmyslová vysokofrekvenční ultra vysokofrekvenční čtečka/zapisovač RFID čtečka karet stanice modbus PoE nosič kódu čtecí hlava skalní pilíř

The new "core" platform achieves 3 meters/second mobile reading, meets high-speed data collection, operates stably for 24 hours without crashing, and meets severe working environments. The small body supports TCP communication, POE network cable power supply, direct connection to the switch, and simplified integrated wiring.

Simple configuration and easy networking

Baud rate and address station number are configurable (RS-485 model)

IP address, port number, server & client are configurable (TCP model)

Multiple working modes, freely switchable by software

Automatic reading data reporting mode

The device is always waiting for card reading. When the tag enters the card reading range, it collects data according to the configured data area and reports it to the host computer system.

Automatic read and save register mode

The device is always waiting for card reading. When the tag enters the card reading range, the data is collected according to the configured data area, stored in the register, and the PLC calls the register to collect and read.

Master-slave command mode

The device is connected to a host computer such as a PLC, computer, or industrial control board. When the device receives a query command from the host computer, it reads and writes electronic tags within the radio frequency range and returns data.

DEMO software simple debugging, remote online technical guidance

Powerful PC software and video guidance are provided free of charge to make development and testing easier. Professional technical engineers provide installation and debugging services online, so you don’t have to worry about installation and testing.

High frequency product information

Output power:<400mW

Card reading distance: 0-90mm

Communication protocol: serial port, TCP/IP, Modbus

Communication interface: RS485, RS232, TCP

Working frequency: 13.56MHz

Working voltage: 7.5~36V

Working mode: automatic, master-slave command

Working agreement: I5015693, ISO14443A

Protection level: IP67

Working tips: red and green LED, buzzer

Working temperature: -20~70℃

Working humidity: -10%RH~95%RH (non-condensing)

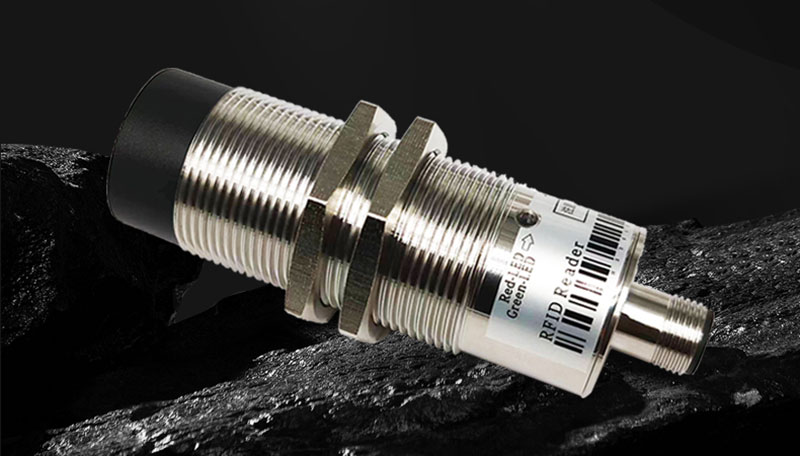

Product material: 304 stainless steel

Product size: M30X 97mm

Product weight: about 100g

·Multi-protocol reading and writing M1, 15693, Ntag21x tags

·MODBUS protocol directly connects to PLC, supporting simple and compound instructions

Modbus RTU, serial port protocol (RS232/RS485),

Modbus TCP, TCP/IP protocol (RJ45)

·Supports active upload of any data in the configuration card

·Supports initialization and writing of tag data

·304 stainless steel body, TCP network port version supports POE power supply

·Built-in red and green LED indicators and buzzer

·Data transmission baud rate can be set freely

·Supports cascade reading of RS485 readers and free configuration of addresses

·Support TCP readers and writers to freely configure IP addresses and multi-device networking

.Support reader and writer to set internal upload key

· Optional data reporting and deduplication function

·Provide convenient C# test application software and instruction set development documents

Convenient secondary development shortens project cycle

UHF product information

Output power:<500mW

Card reading distance: 0-320mm

Communication protocol: serial port, TCP/IP, Modbus

Communication interface: RS485, RS232, TCP

Working frequency: 902~928Mhz

Working voltage: 7.5~36V

Working mode: automatic, master-slave command

Working agreement: ISO18000-6C (EPC C1 GEN1)

Protection level: IP67

Working tips: red and green LED, buzzer

Working temperature: -20~70℃

Working humidity: -10%RH~95%RH (non-condensing)

Product material: 304 stainless steel

Product size: M30X 97mm

Product weight: about 110g

·Support reading and writing electronic tag protocol: ISO18000-6C

·MODBUS protocol directly connects to PLC, supporting simple and compound instructions

Modbus RTU, serial port protocol (RS232/RS485),

Modbus TCP, TCP/IP protocol (RJ45)

·Supports active upload of any data in the configuration card

·Supports initialization and writing of tag data

·304 stainless steel body, TCP network port version supports POE power supply

·Built-in red and green LED indicators and buzzer

·Data transmission baud rate can be set freely

·Supports cascade reading of RS485 readers and free configuration of addresses

·Support TCP readers and writers to freely configure IP addresses and multi-device networking

·Maximum output power 26dBm, adjustable reading distance 0-320mm (the reading distance is related to the tag scene)

· Optional data reporting, deduplication, and filtering settings

·Provide convenient C# test application software and instruction set development documents

Convenient secondary development shortens project cycle
